The needle board lift ‘Multitalent’
World first:
"Multitalent" Lift System
The intelligent needle‑board lift for needle punching machinery
Remove safely, align ergonomically, fill with precision.
A new way of handling needle boards.
The Multitalent takes over the complete handling of needle boards — from safe removal from the machine to precise maintenance and reinstallation.
The integrated rotation unit enables controlled turning of the needle boards, while programmable positioning automates the entire workflow.

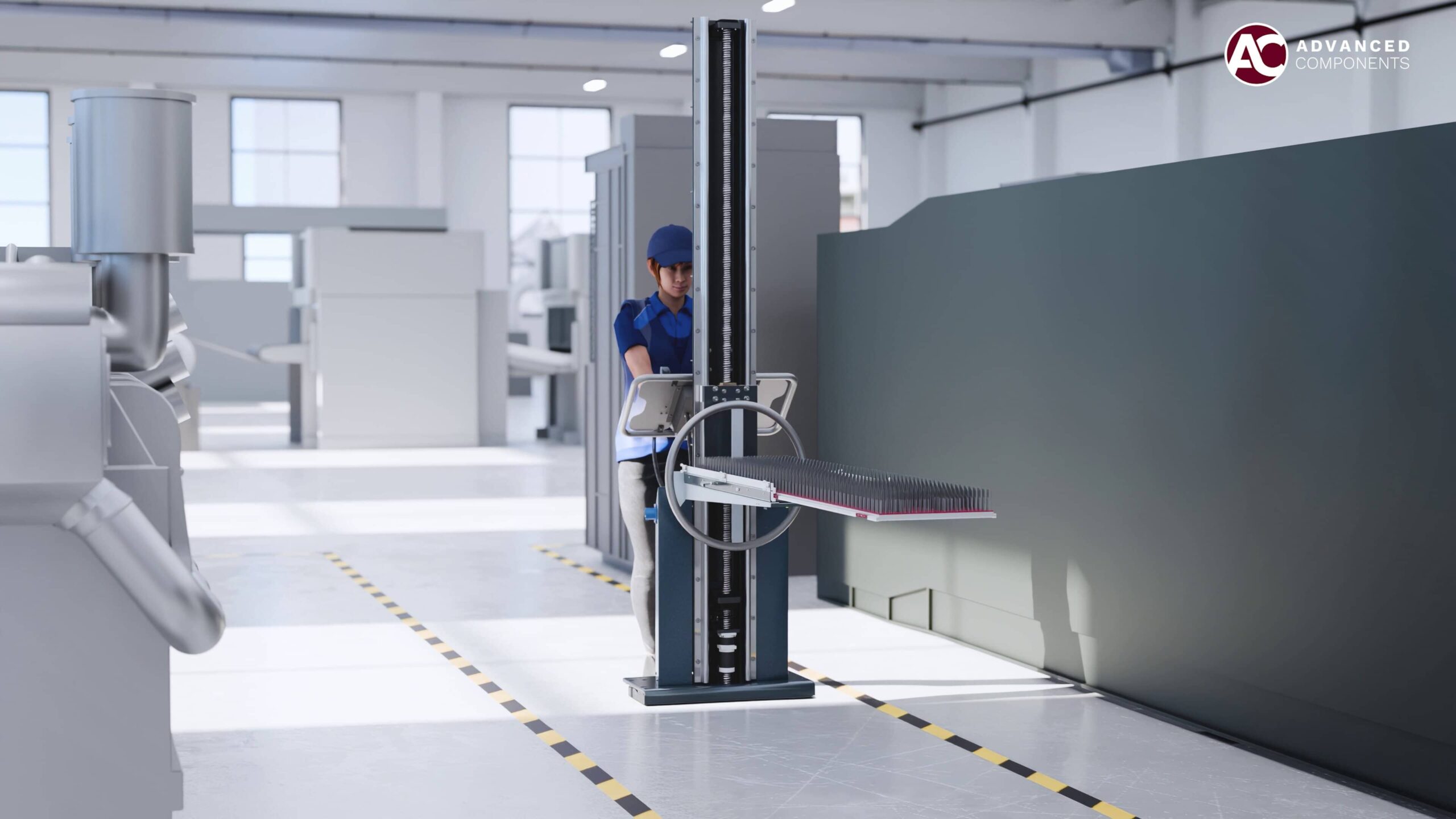

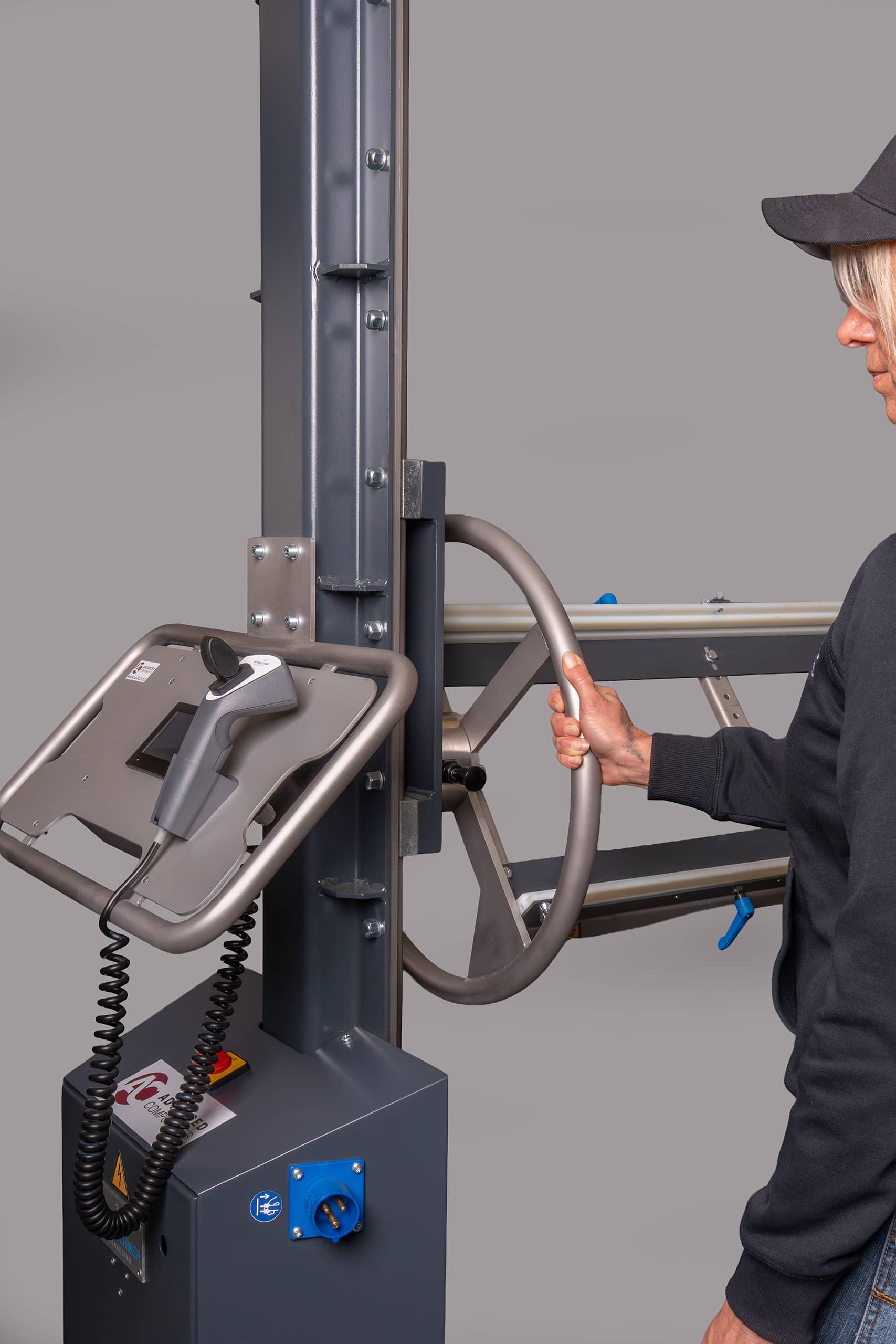

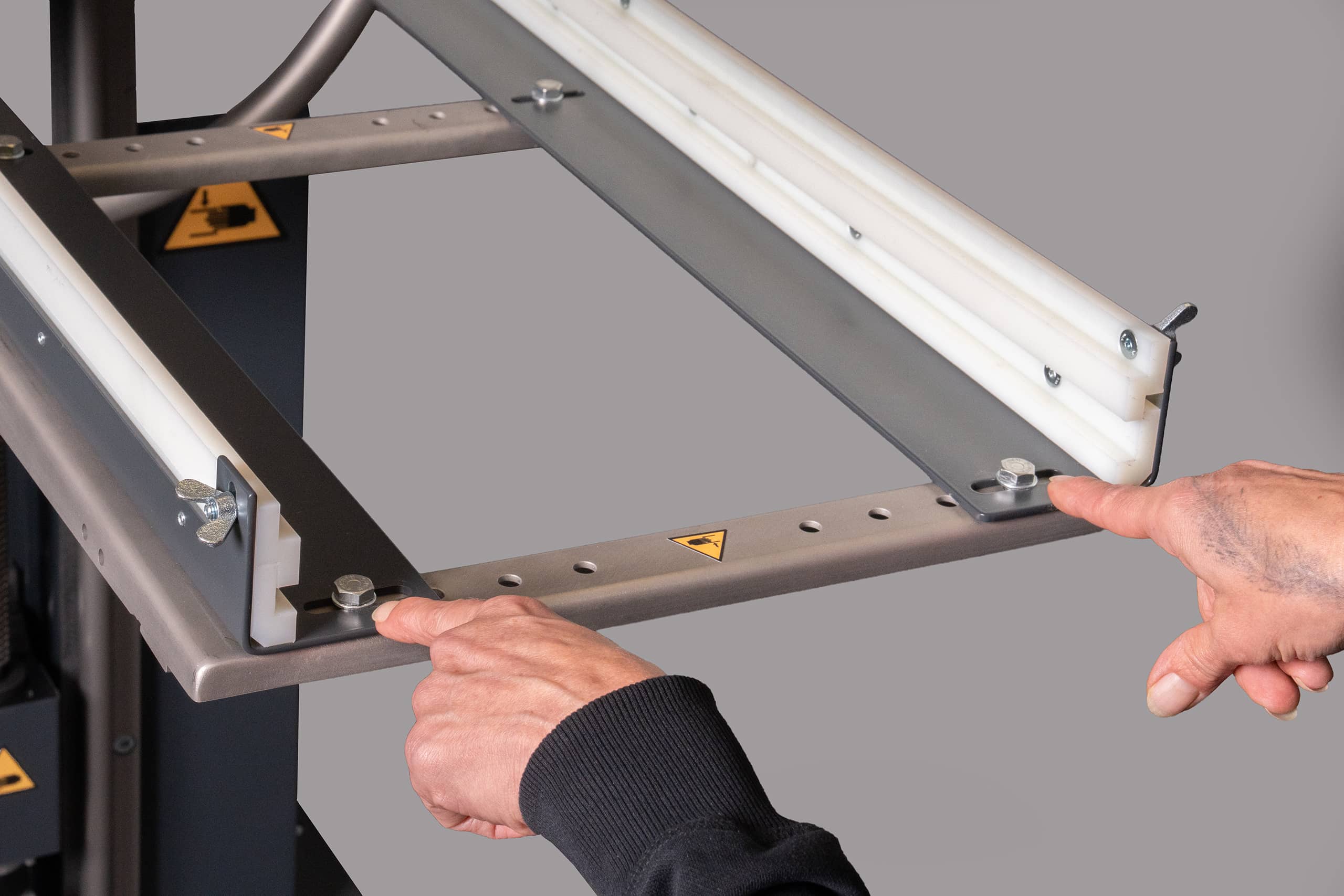

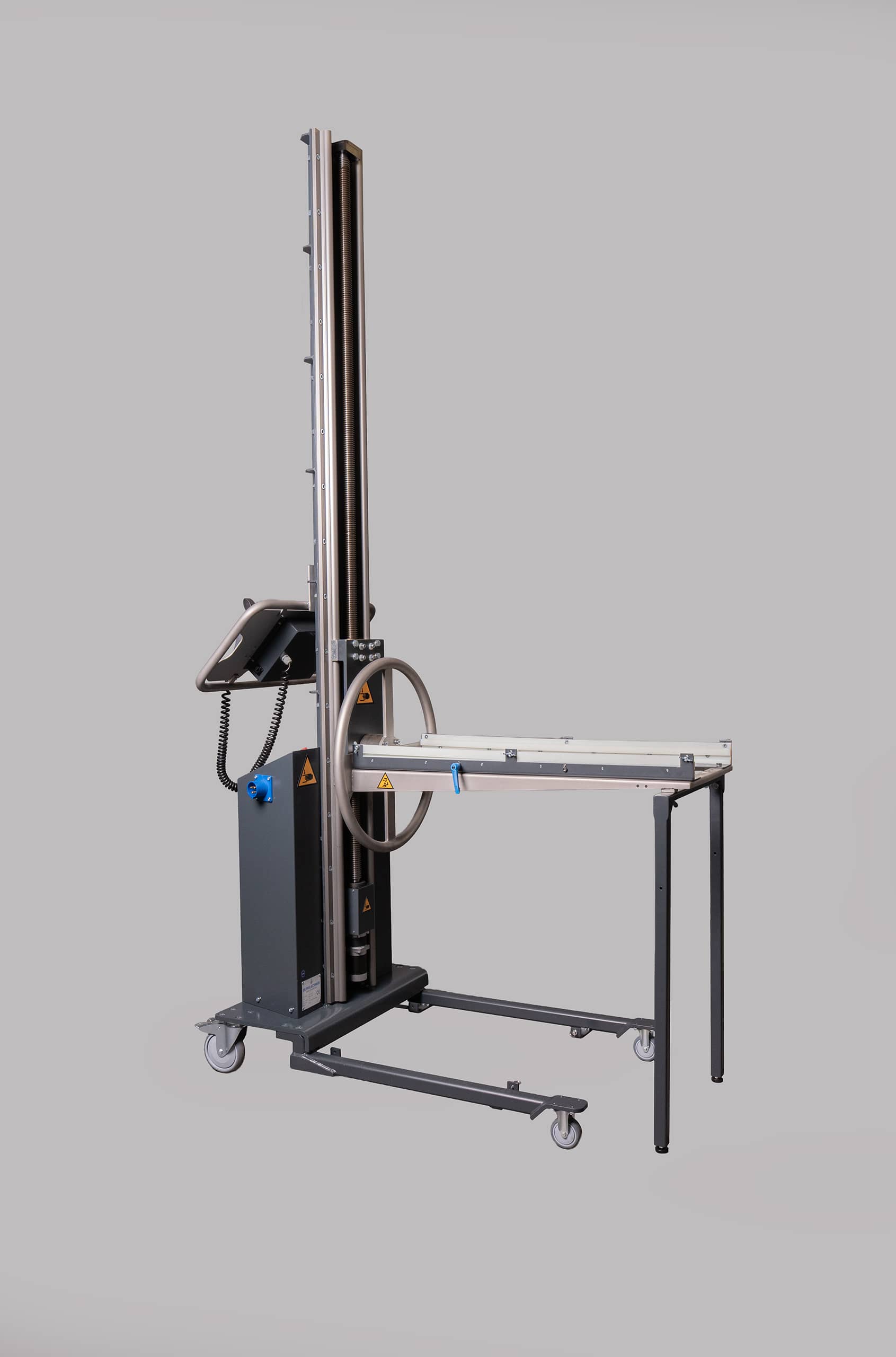

Images of the Needle Board Lift
Features of the Needle Board Lift

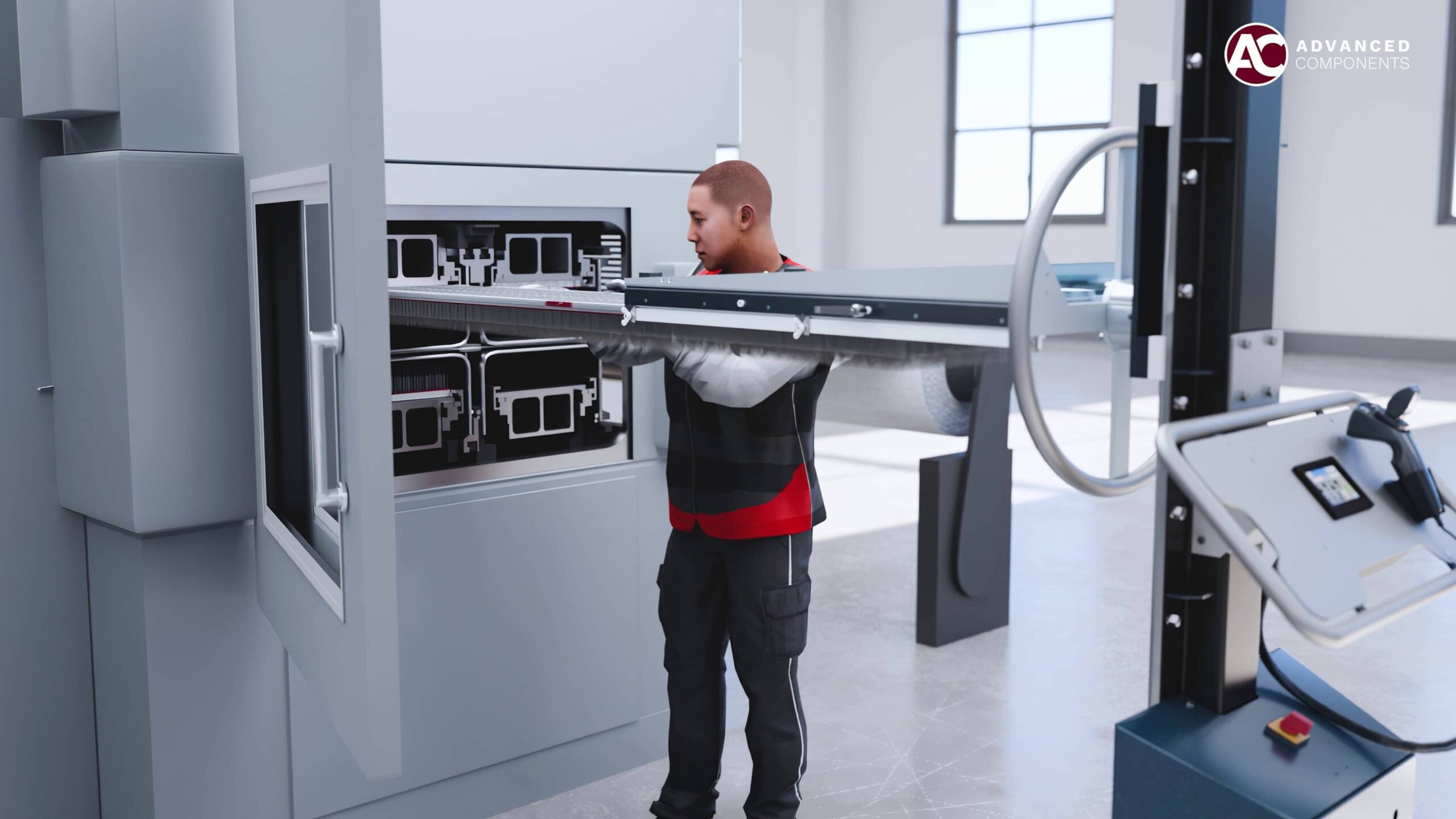

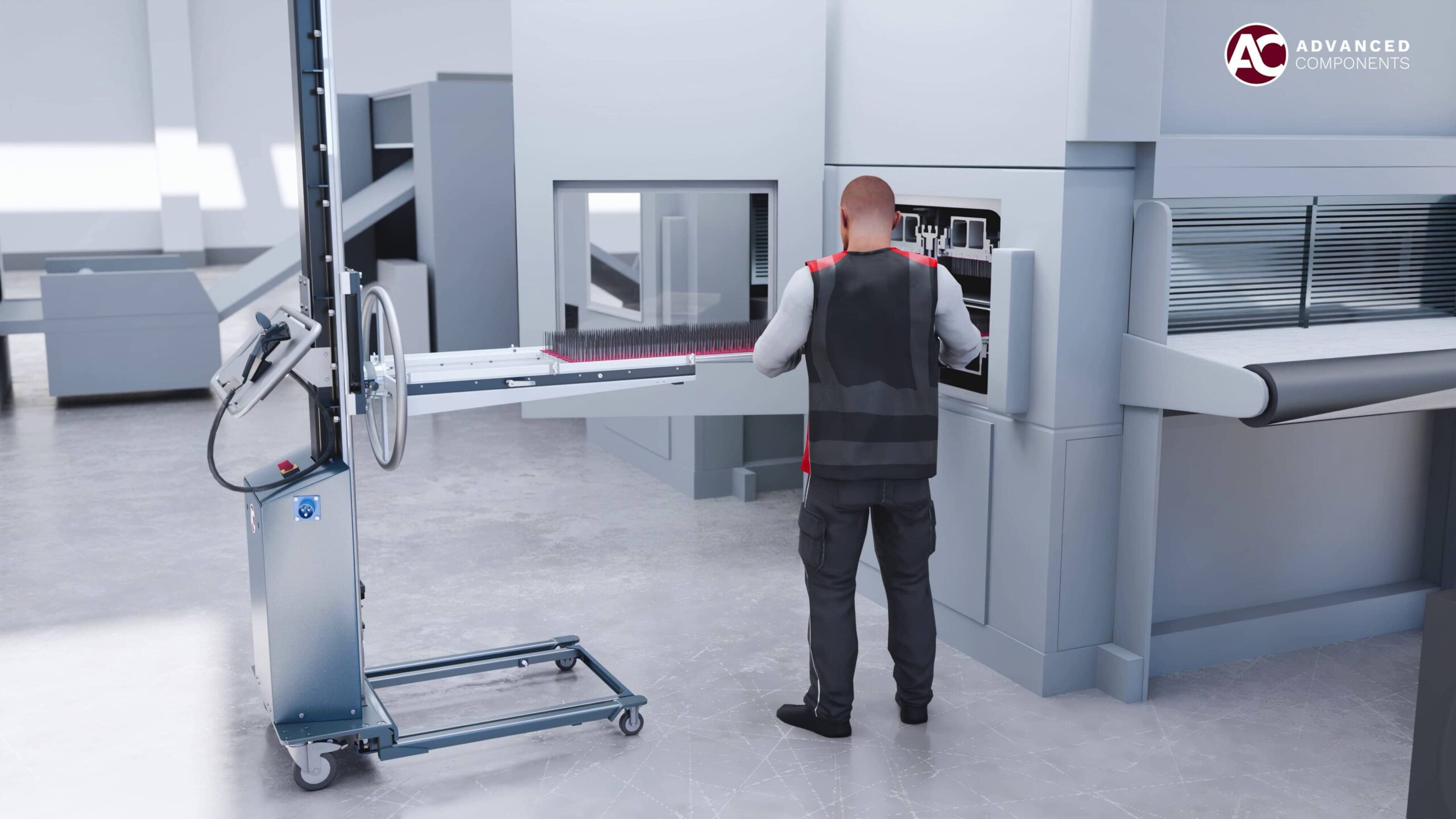

- Removing needle boards

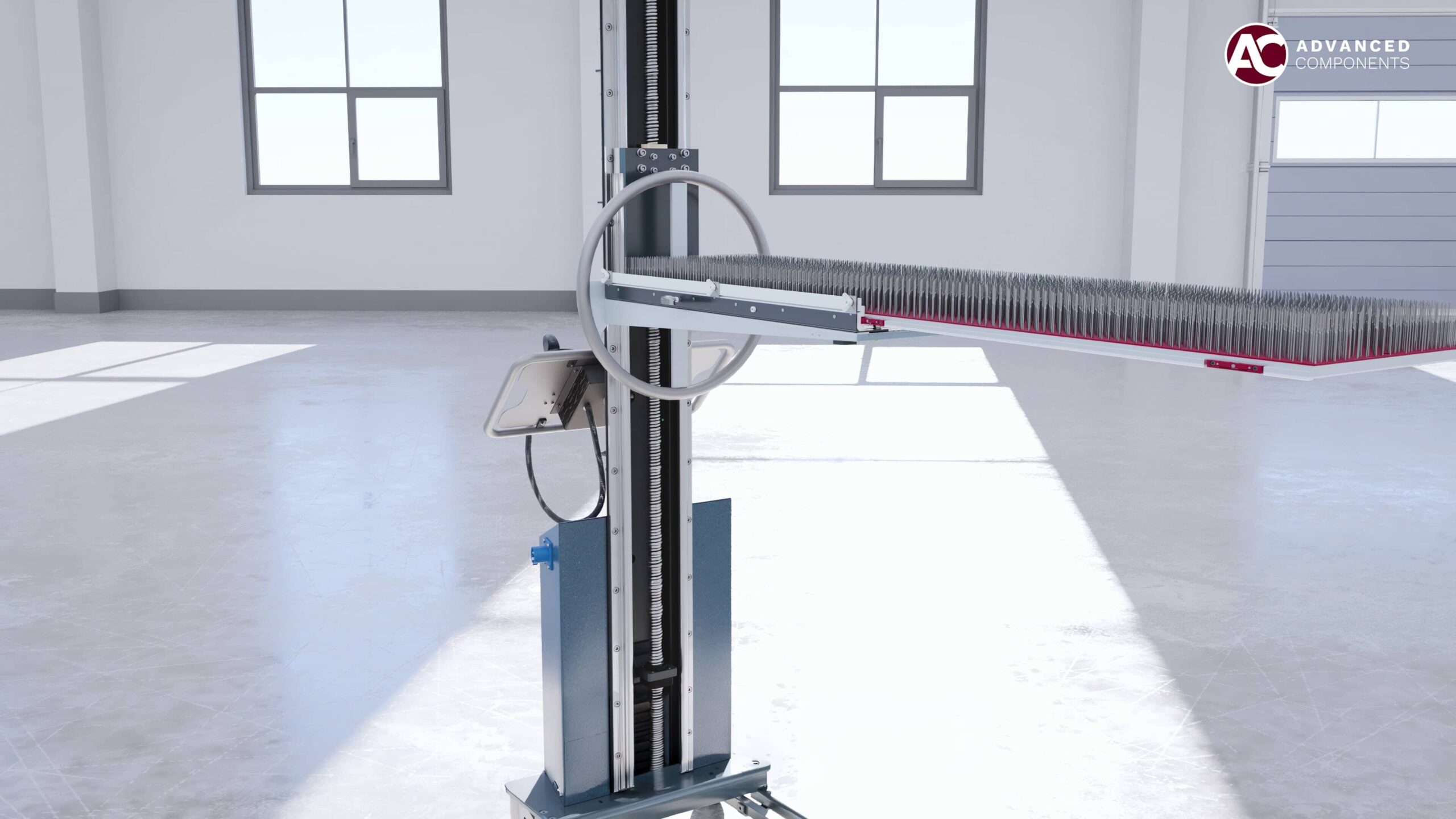

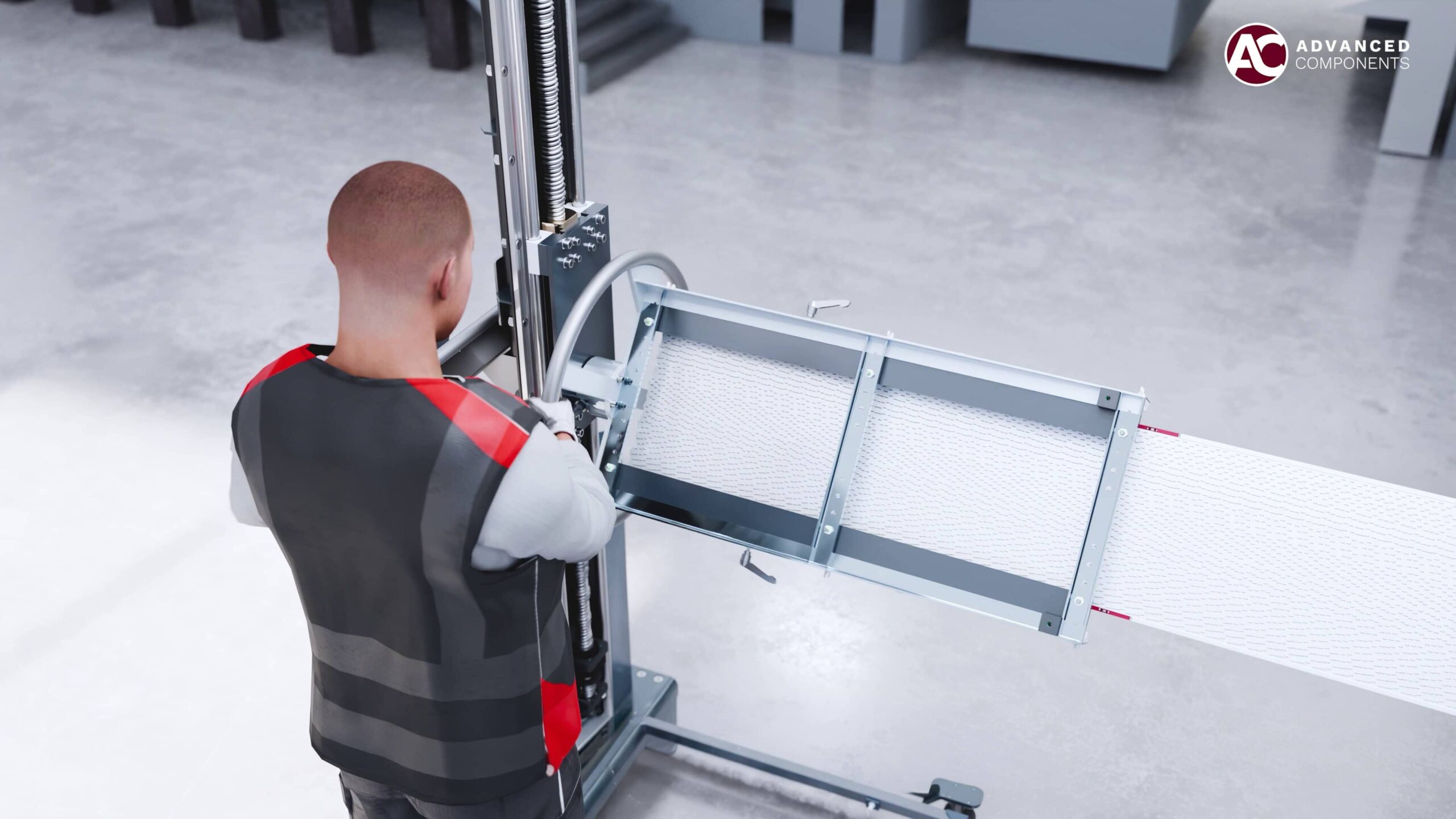

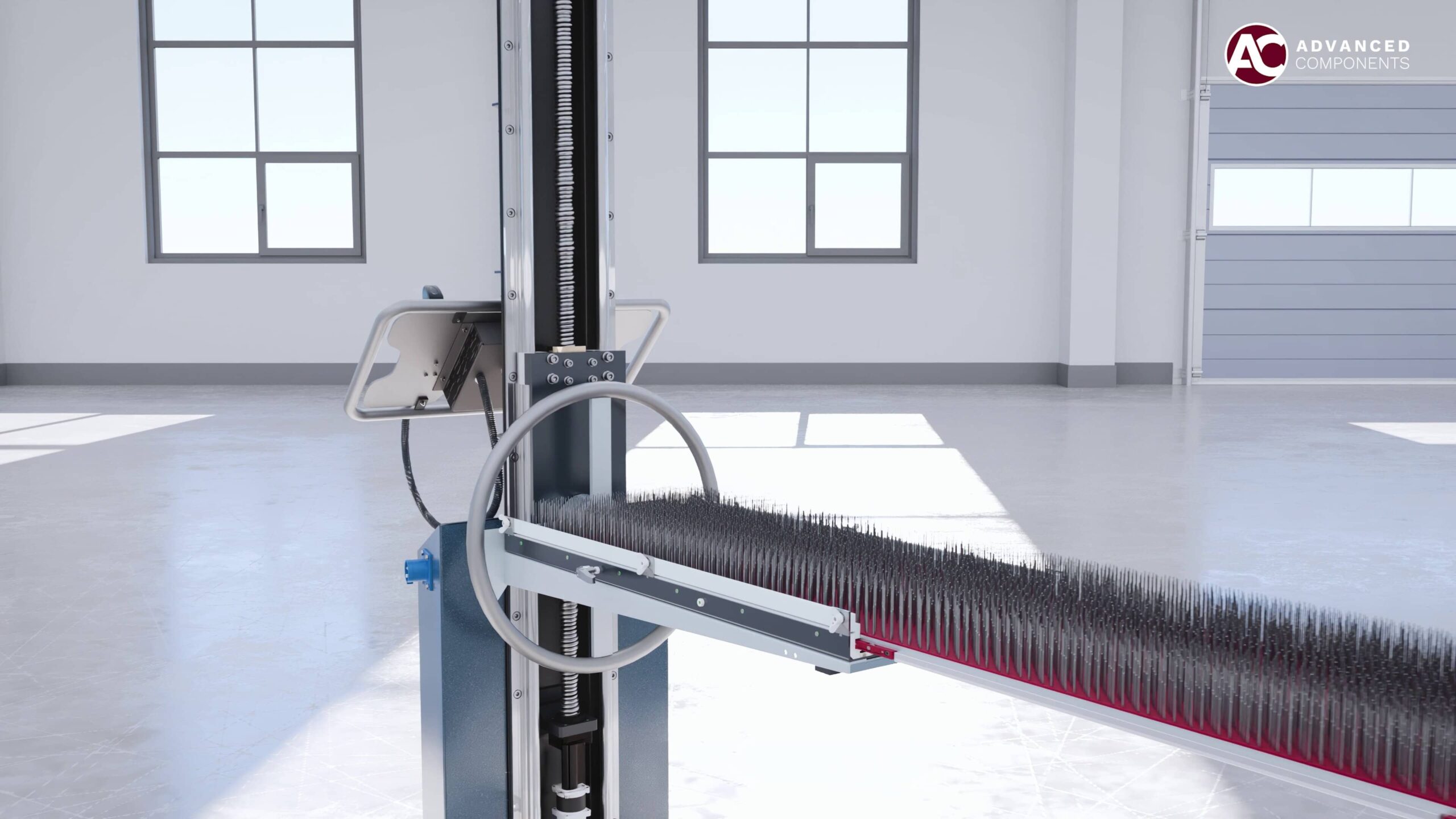

- Rotating the needle boards

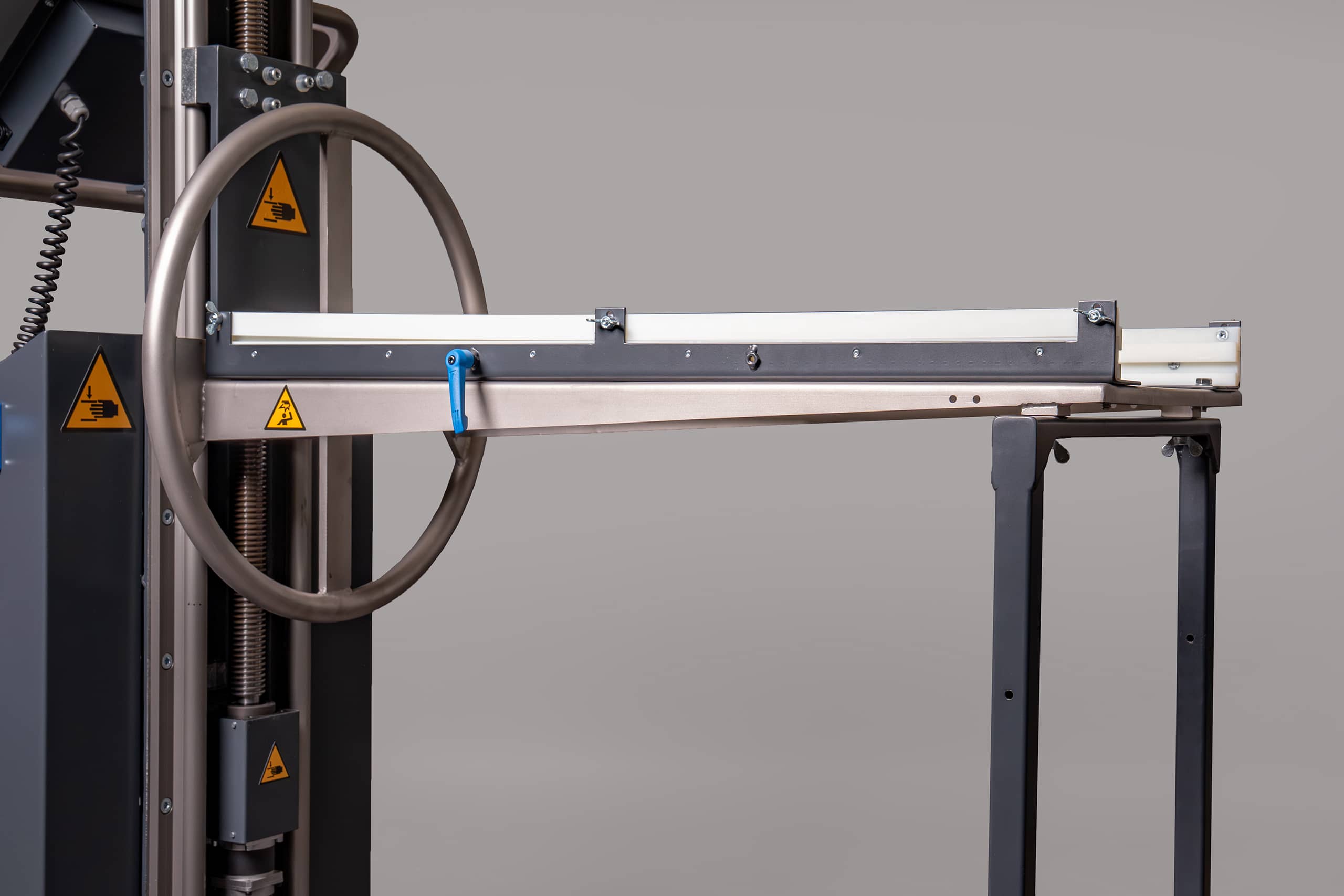

- Maintenance on the integrated service table

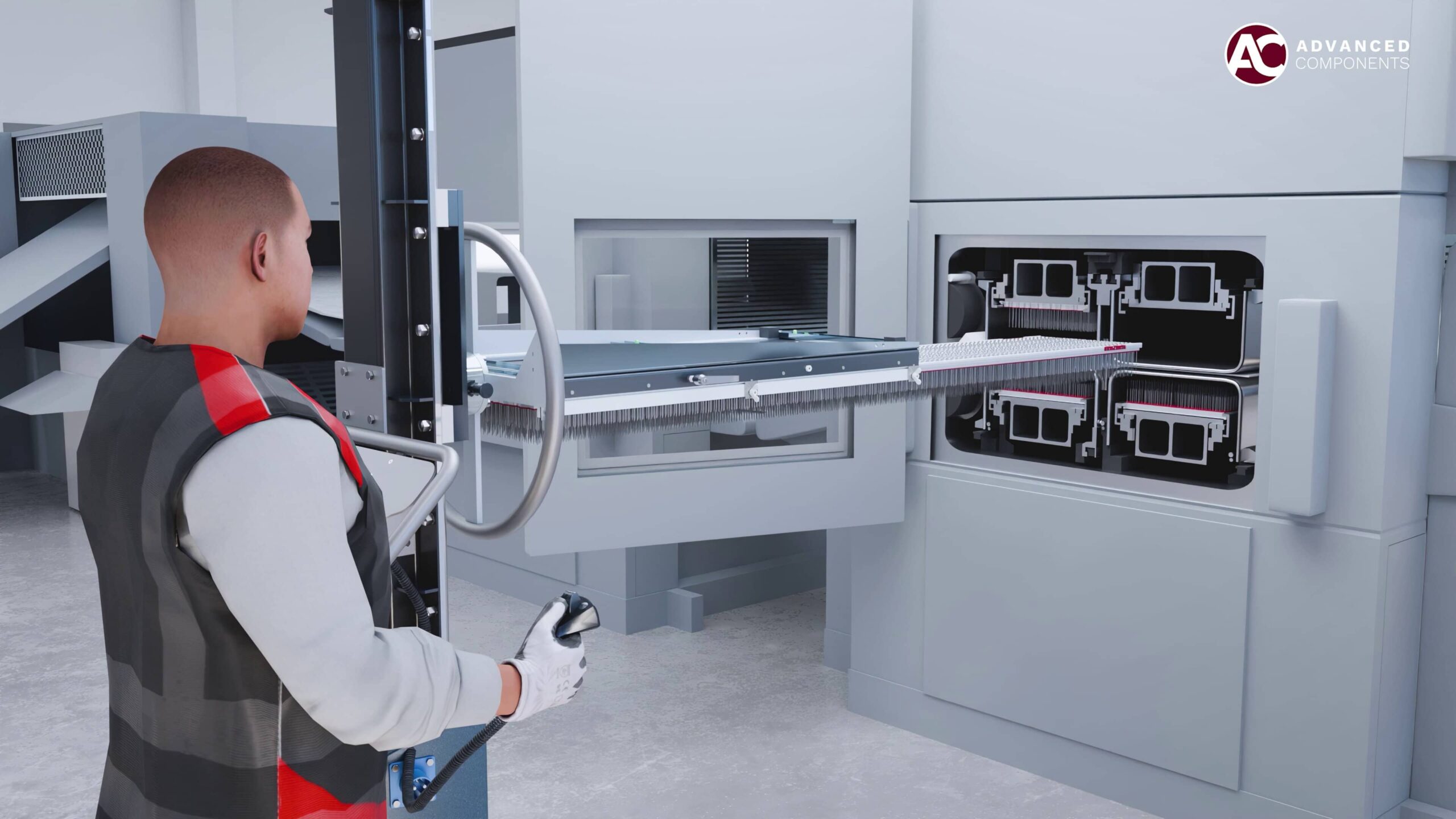

- Precise reinsertion

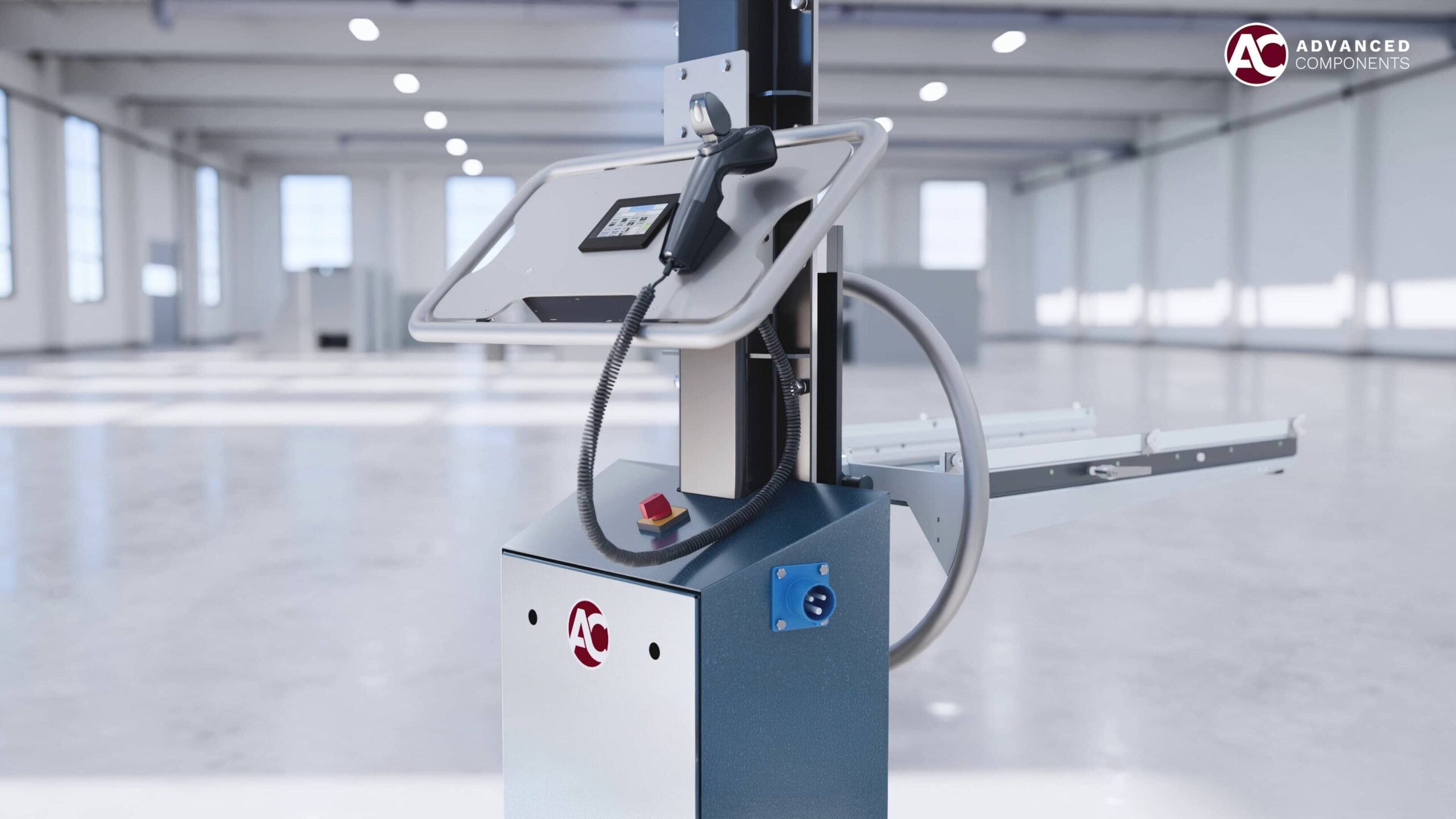

- Ergonomic operation
Ergonomic operation
Reduces physical strain and the risk of injury.

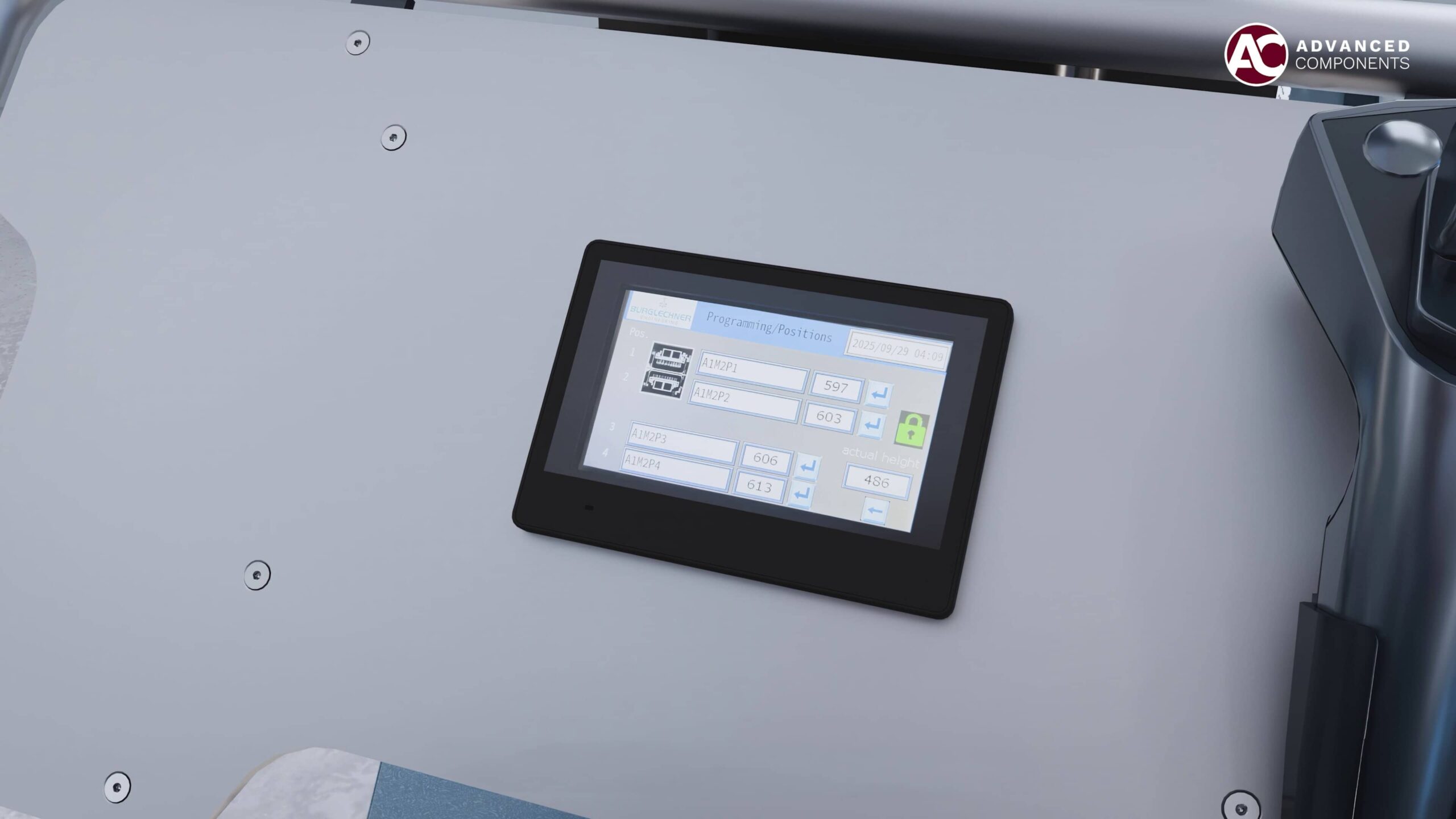

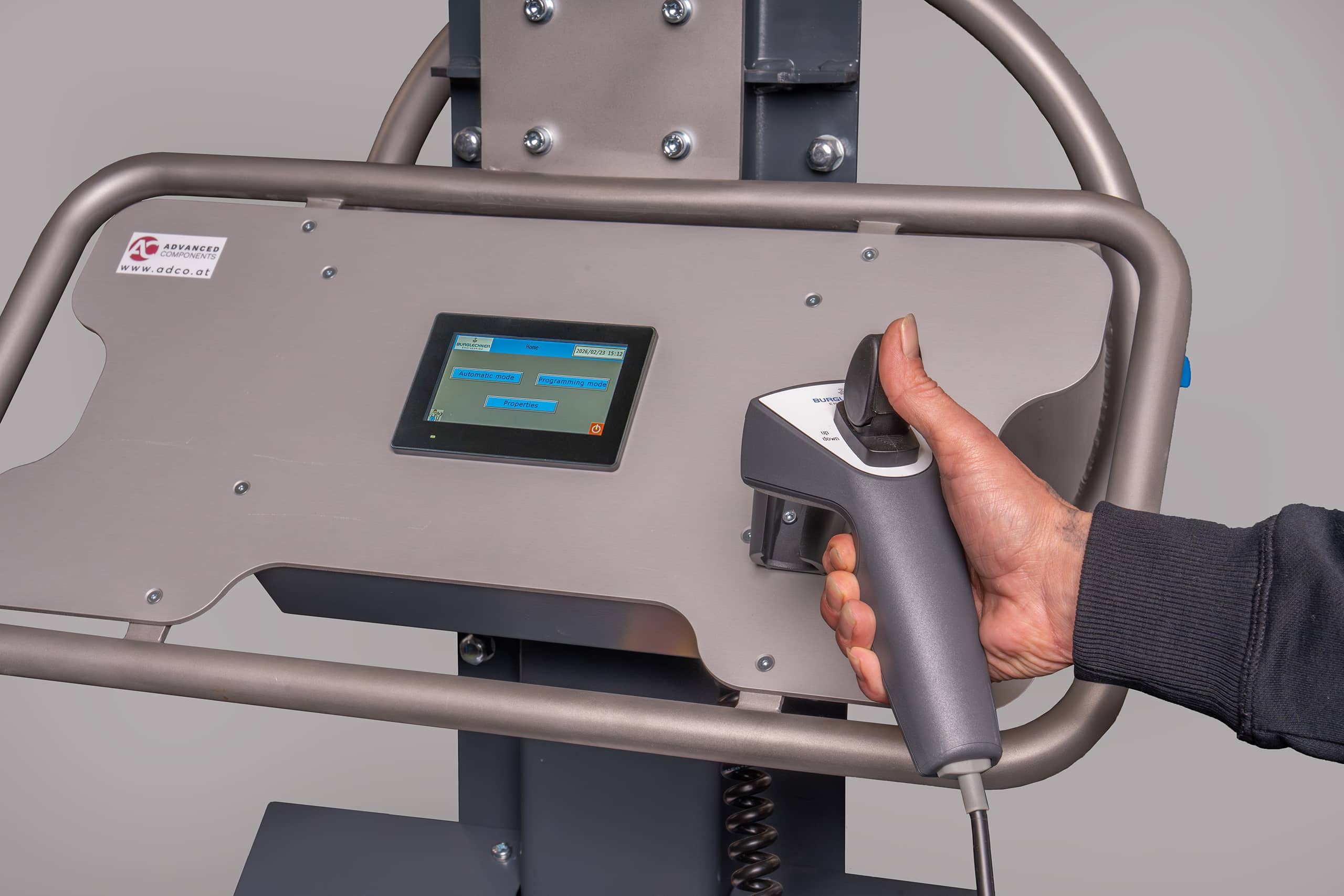

Precise positioning
Programmable positions for different machines.
One‑person operation
Many work steps can be carried out by just one operator.
Compact design
Ideal for production environments with limited space.
Parameter | |
|---|---|
Max. Needle Board weight | 40 kg |
Max. Needle Board length | 2000 mm |
Needle Board width | 250–380 mm |
Needle Board thickness | 9–16 mm |
Max. lifting height | 2150 mm |
Min. lifting height | 350 mm |
Are you interested in making your maintenance processes safer and more efficient?
Discover how the Multitalent can optimize your workflow.
